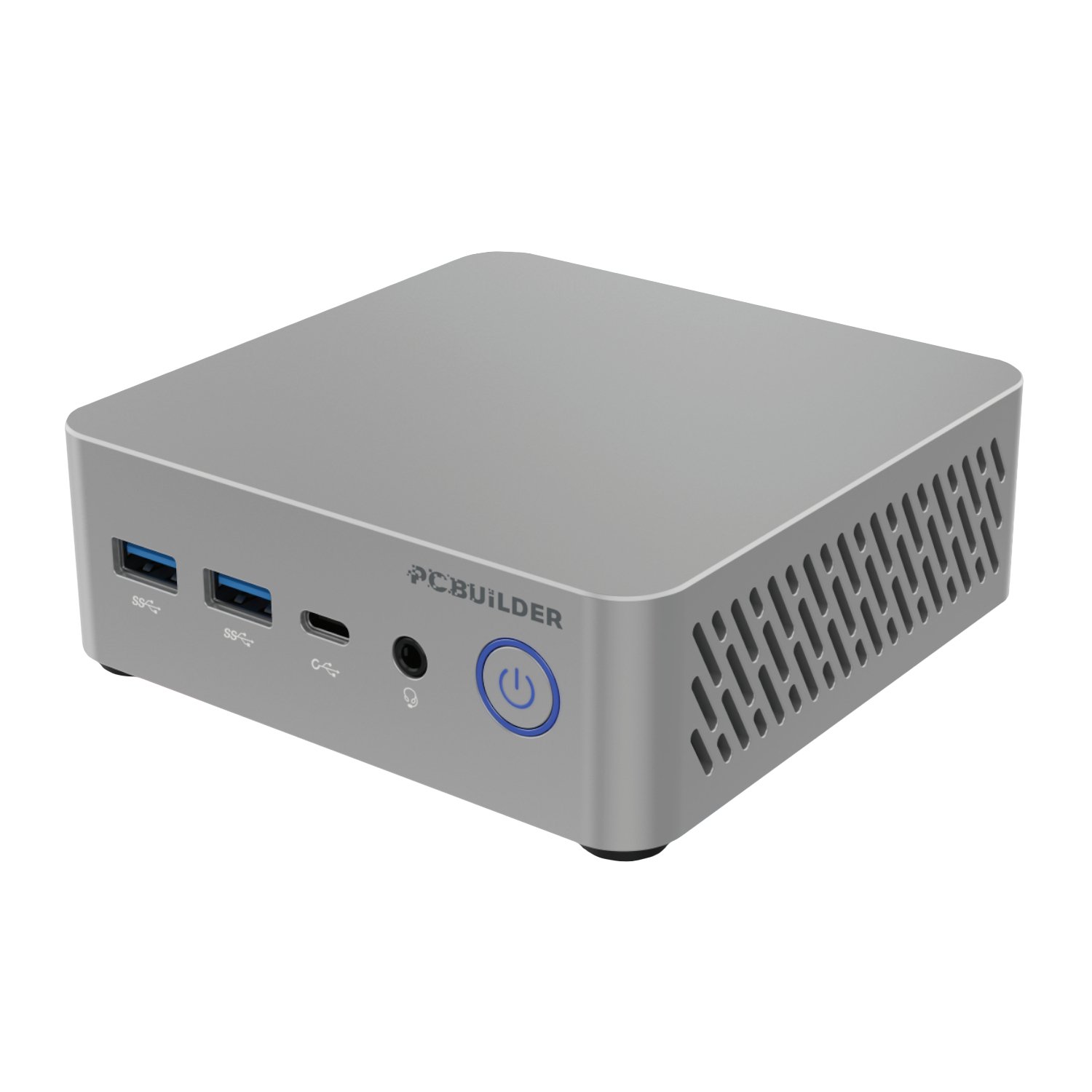

PCBUiLDER™ CUBE Ryzen 5 3500U 16GB DDR4 512GB Windows 11 Pro Mini PC

QUICK SPEC:

• PCBUiLDER™ CUBE Mini PC
• AMD Ryzen™ 5 3500U 4-Core 2.10GHz (Up to 3.70Ghz)
• 16GB DDR4 3200MHz SO-DIMM Memory (2 x 8GB)
• 512GB Gen3 M.2 NVMe Solid State Drive (SSD)
• Radeon™ Vega 8 Graphics
• Built-in Power Supply
• 2.5Gb LAN and Wi-Fi 6 connectivity
• Microsoft Windows 11 Pro

The PCBUiLDER™ CUBE-R5-3500 Mini PC is the perfect space-saving solution for busy work environments. Whether you’re managing office tasks, running a retail checkout, or powering digital displays, this compact powerhouse keeps things smooth and efficient. Its responsive performance ensures multitasking feels effortless, while built-in Wi-Fi and Bluetooth 5.0 connectivity options keep you plugged into your workflow without delays. Need multiple screens? Easily connect to up to 2 displays for a more productive setup. Plus, with its sleek, VESA-mountable design, you can keep your desk clean and cable-free by securing it neatly behind a monitor. Small, powerful, and built to keep up, the PCBUiLDER™ CUBE-R5-3500 Mini PC is ready to work wherever you need it.

FEATURES:

• Get full PC performance in a compact design, perfect for offices, digital displays, and POS systems
• AMD Ryzen™ 5 3500U processor, featuring 4 cores and 8 threads for speeds up to 3.70GHz
• Enjoy rapid data transfer speeds with USB up to 5 Gbps
• Experience crisp 4K visuals with Radeon™ Vega 8 UHD Integrated Graphics for stunning displays
• M.2 NVMe SSD for ultimate storage flexibility
• Stay connected with high-speed Wi-Fi, Bluetooth, and Gigabit Ethernet for seamless networking
• Extend or mirror up to 1 additional display for boosted productivity
• A sleek, minimalist design that saves space and mounts seamlessly

SPECIFICATIONS:

• Operating System Installed: Windows 11 Pro
• CPU: AMD Ryzen™ 5 3500U (4 cores/8 threads, 4MB cache up to 3.70GHz)
• GPU: Radeon™ Vega 8 Graphics
• Memory Slots: 2x Dual-channel DDR4 SO-DIMM (4GB up to 64GB@2400MT/s)
• Installed Memory: 16GB 3200MHz DDR4 SODIMM (2 x 8GB)
• Storage Slots: 1x M.2 2280 PCIE3.0x4 (SSD) Not Support SATA
• Installed Storage: 512GB NVMe SSD
• Wireless: LAN Wi-Fi 5 (Wi-Fi 802.11 a/b/g/n/ac)
• Bluetooth: V5.0
• Ports (front):
  • 1x Audio, 3.5mm Combo audio jack, CTIA
  • 1x Type-C (Data only USB3.0 5Gbps)
  • 1x Power button, with LED
  • 2x USB3.2 Gen 1 (up to 5 Gbps)
• Ports (back):
  • 1x DC power
  • 1x HDMI 1.4: 3840×2160 (4K@30Hz)
  • 1x DP 1.4: 3840×2160 (4K@60Hz)
  • 1x Type-C (PD+USB2.0 data)
  • 2x USB2.0
  • 1x RJ45 Gigabit Ethernet (1Gbps)
• VESA Mount: Yes
• AC Input: 65W/19V/3.42A , 5.5*2.5mm
• Total Draw Power (TDP): 15W
• Kensington Lock Slot: Yes
• Operating System Support: Windows & Linux
• Colour: Silver
• Material: PC & ABS
• Operating Temperature: 0°C to 40°C
• Product Dimensions: 11.2 x 11.2 x 3.8 cm
• Product Weight: 550g

WHAT’S IN THE BOX:

• PCBUiLDER™ CUBE Ryzen 5 3500U 16GB DDR4 512GB Windows 11 Pro Mini PC x1
• AC adapter x1
• VESA mounting bracket x1
